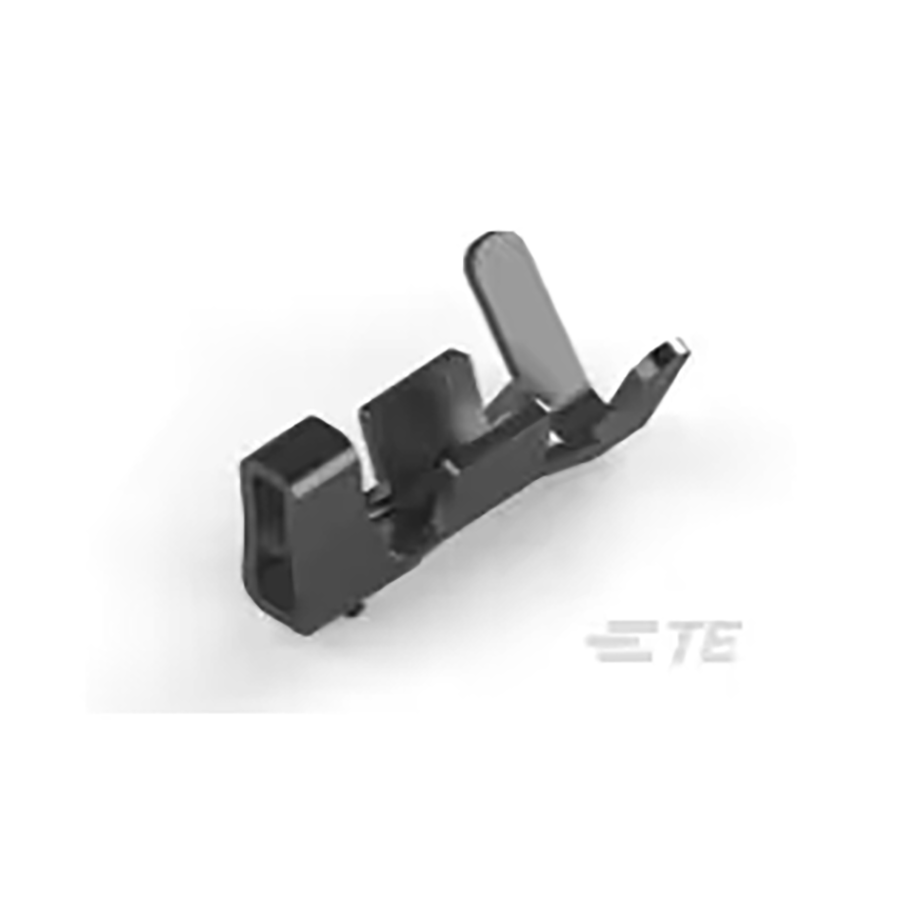

353907-1
Manufacturer:
TE Connectivity
Mfr.Part #:
353907-1
Datasheet:
Description:
Headers and Wire Housings Cable Socket Number of Positions:40 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 4.7 mm |
| Termination | Crimp |
| Diameter | 880 µm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Height | 2.35 mm |
| Packaging | Reel |
| Depth | 1.82 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 500 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 2.54 mm |
| Current Rating | 2 A |
| Approvals | CSA |
| Orientation | Straight |
| Operating Supply Voltage | 50 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Socket (Female) |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Socket |
| Wire/Cable Gauge | 28 AWG to 24 AWG |
| Number of Positions | 40 |
| Number of Rows | |
| Row Spacing | |
| Wire/Cable Type | Discrete |
| Circuit Application | Signal |
| Connector System | Wire-to-Board |
| Contact Style | Socket |
| Contact Resistance | 30 mΩ |
| Contact Current Rating | 2 A |
| Wire Gauge (Max) | 28 AWG |
| Wire Gauge (Min) | 24 AWG |
| Insulation Diameter | 1.0414 mm |
| Plating Thickness | 200 nm |
| Mating Post Length | |
| Contact Shape | Rectangular |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Termination Post Length | |
| Termination Style | Crimp |
Stock: 139050
Distributors
pcbx
pcbxUnit Price$0.31442
Ext.Price$0.31442
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.31442 | $0.31442 |
| 10 | $0.15721 | $1.57210 |
| 50 | $0.12093 | $6.04650 |
| 100 | $0.09302 | $9.30200 |
| 500 | $0.07155 | $35.77500 |
| 1000 | $0.05504 | $55.04000 |
| 3000 | $0.04234 | $127.02000 |
| 5000 | $0.03257 | $162.85000 |
| 10000 | $0.02505 | $250.50000 |
| 30000 | $0.02069 | $620.70000 |
